BETE Fog Nozzle, Inc.

April 13, 2006
High-flow nozzles atomize efficiently

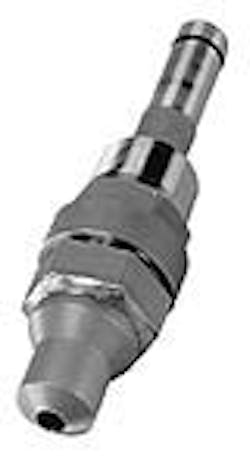

SpiralAir nozzles from BETE Fog Nozzle, Inc. use a three-stage process for more efficient atomization at comparable flow rates. Standard and custom lance designs are available. Parts are constructed from an abrasion-resistant cobalt alloy.

Applications for the SpiralAir nozzle include:

  • Evaporative cooling
  • Special fire protection
  • Humidification
  • Odor control
  • Spray drying

Design features:

  • A two-fluid nozzle using any gas as the atomizing fluid;
  • Two-phase atomization for highest performance;
  • Designed for high reliability in extremely hostile environments;
  • Efficient design reduces compressed air consumption;
  • U.S. Patent #5,240,183;
  • Spray patterns: Full Cone and Flat Fan;
  • Spray angles: 20° to 90° (other angles available by special order);
  • Flow rates: 0.33 to 20 gpm (2.0 to 80 L/min).
